Darkflash RC2 PWM Controller Module
The Darkflash PWM controller module is equipped with several ARGB and PWM ports. It supports up to 14 lighting effects and can be synchronized with the motherboard. It allows you to control the temperature and the fan speed. It is also user-friendly and extremely durable.
Reliable control
The module allows you to control the temperature and the speed of the fan. If you want to use this capability, please select the PMW/FG port. The PMW port only supports the PMW signal.
14 lighting effects
Give your computer a unique character. The controller supports up to 14 lighting effects. You can switch them to PC mode using the RESET port. This will allow you to synchronize them with an external signal.
Many ports available

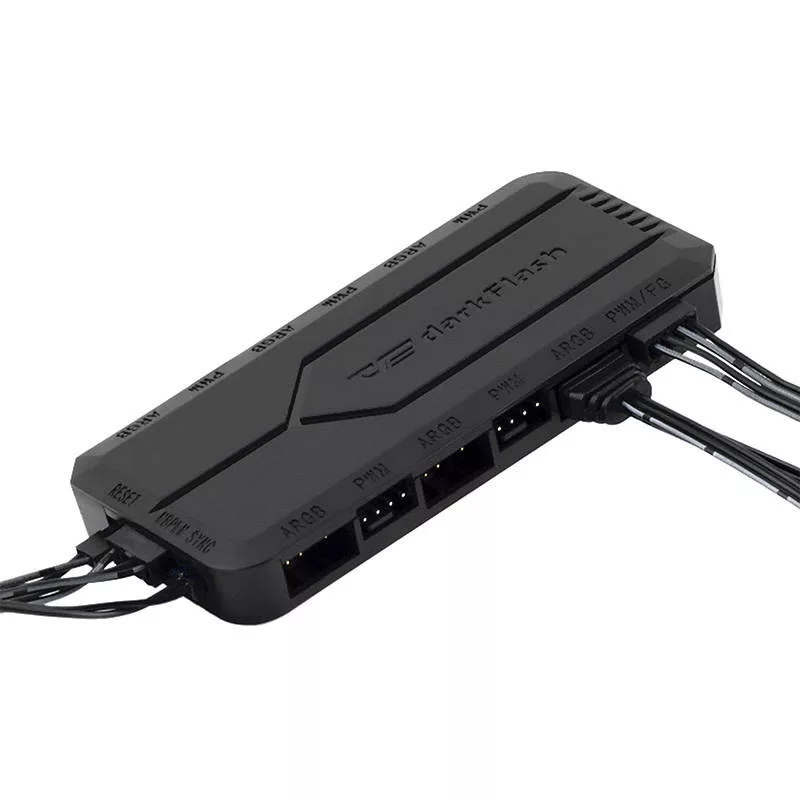

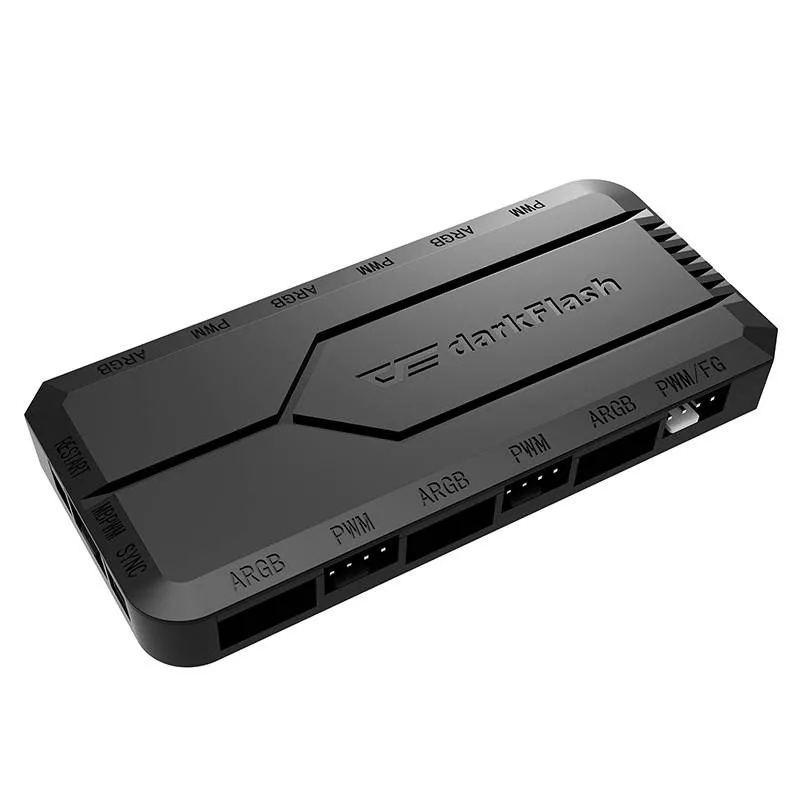

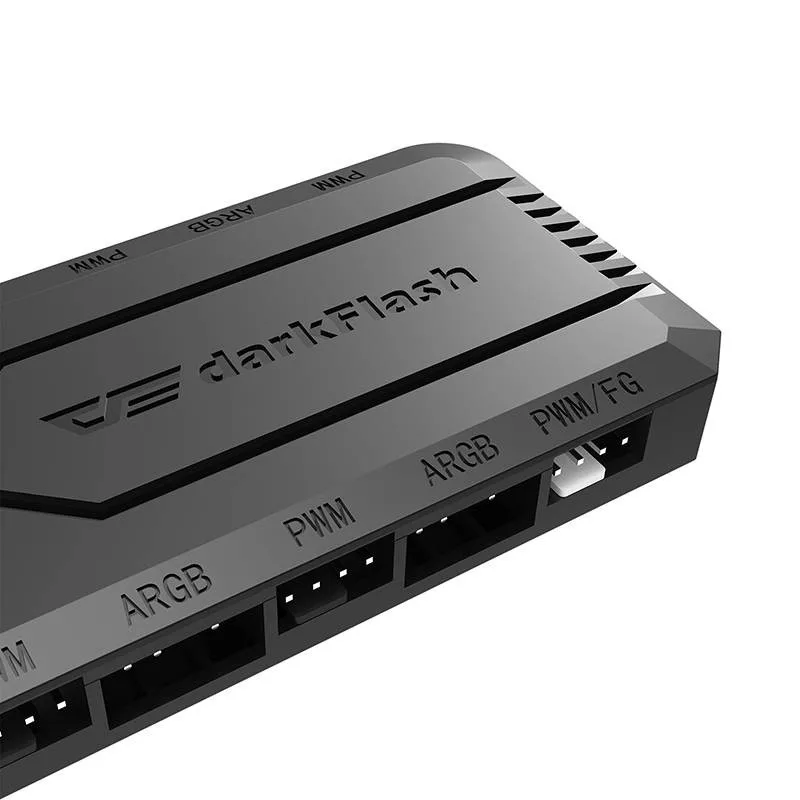

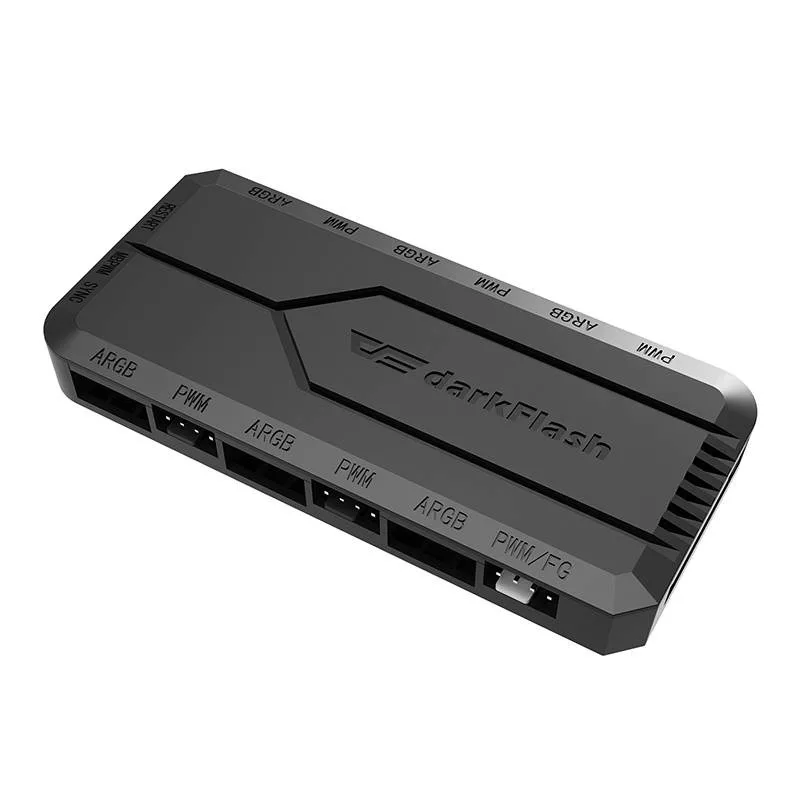

The device is equipped with multiple ports. It offers 6 ARGB ports, 5 PWM ports, and PWM/FG, RESET, MBPWM, and SYNC ports. It also has a SATA port with which you can connect the controller's power source.
Capable of synchronizing with motherboard
The product supports ASUS MSI GIGABYTE and ASROCK. It is also possible to synchronize the lighting effects with other A-RGB products through the motherboard. The controller is compatible with 5V/3 Pin A-RGB ports. Not compatible with 12V/4 Pin ports.

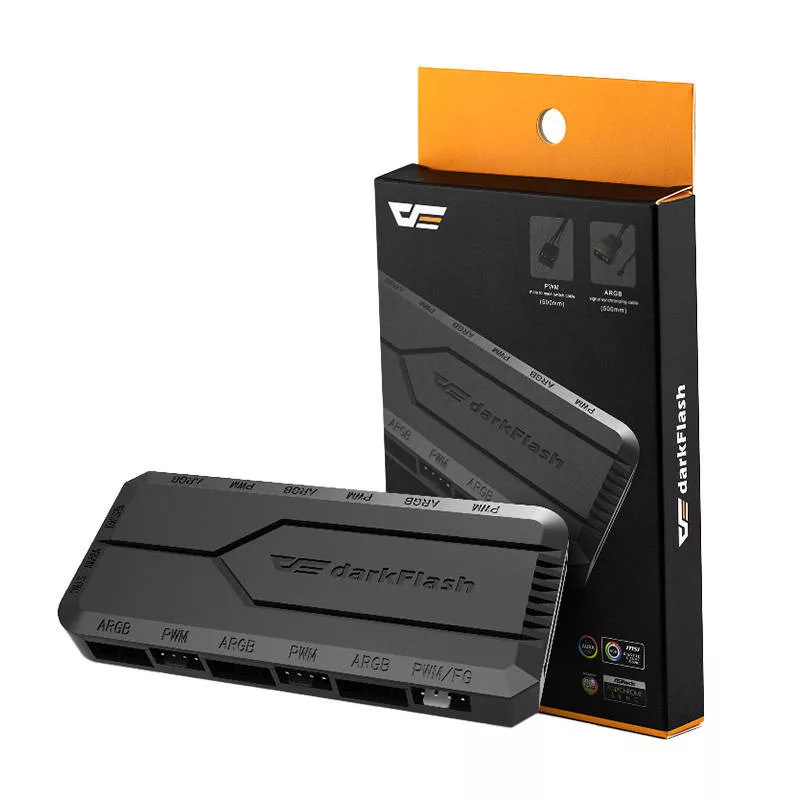

In the box
- Controller
- PWM cable 500mm (female / female)
- ARGB cable 500 mm

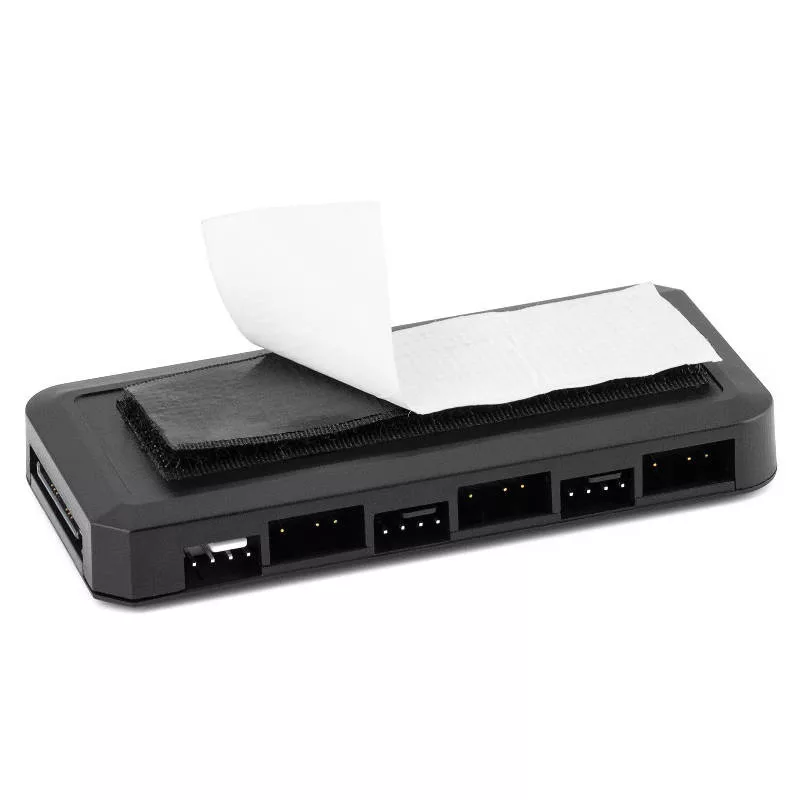

- Adhesive gum
| Brand | Darkflash |
|---|
| Model | RC2 |
|---|
| Compatibility | 5V / 3 Pin ports |
|---|
| Ports | RESET, MBPWM, SYNC, PWM / FG, ARGB x6, PWM x5 |
|---|
| Weight | 0.07kg |
|---|
