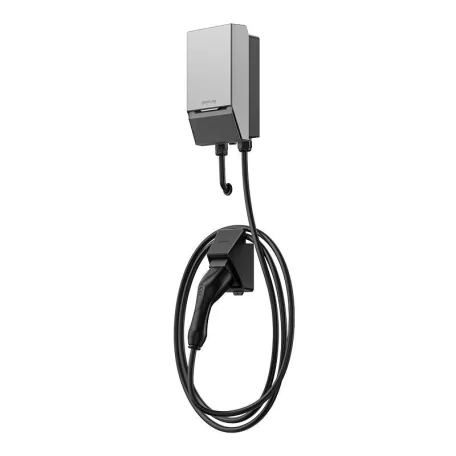

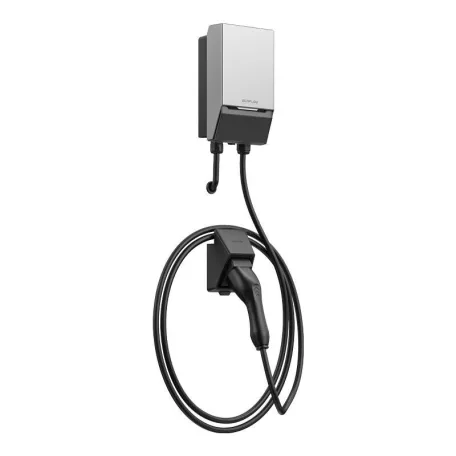

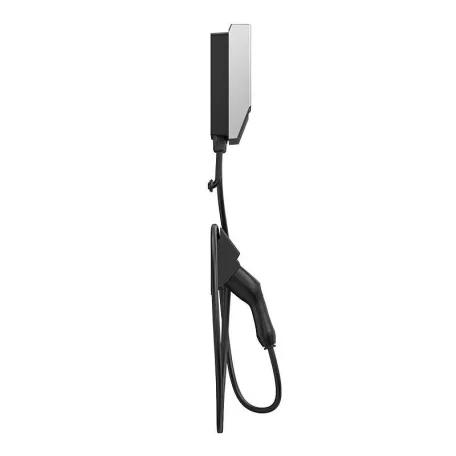

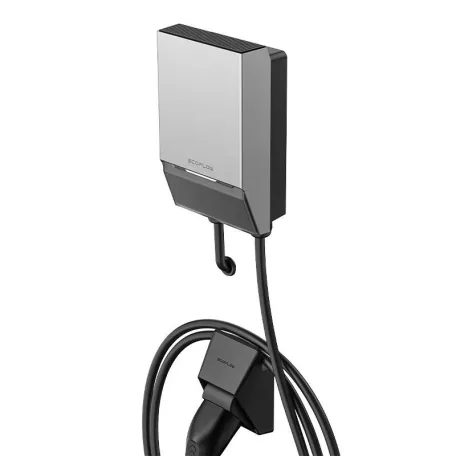

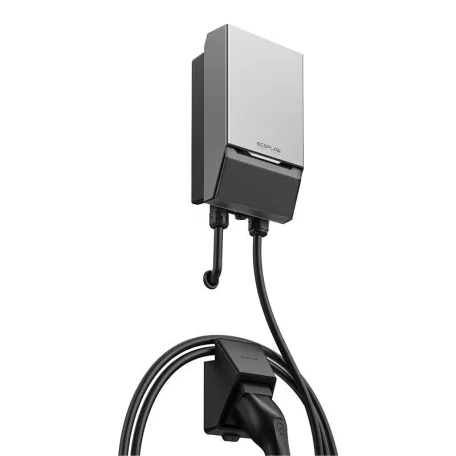

PowerPulse
Convert solar energy into additional kilometers. The EcoFlow PowerPulse solution enables fast charging of electric vehicles using photovoltaic panels. You can also connect them to the PowerOcean system to store any surplus electricity for later use. The product allows for charging vehicles with a power of up to 11 kW while ensuring complete safety of operation. It also stands out with its solid and durable construction. Install the dedicated EcoFlow application and enjoy full control over your system.
Fast Charging with up to 11 kW of Power
PowerPulse allows you to conveniently charge your electric vehicle using solar energy generated by photovoltaic panels. It generates power of up to 11 kW, which means it can increase the vehicle's range by over 100 km in just one hour! So, you don't have to wait too long. Furthermore, advanced control and microsecond calibration maximize the use of solar energy and load management, speeding up the charging process.
EcoFlow PowerPulse and PowerOcean - the Perfect Combination
The EcoFlow PowerPulse solution is compatible with PowerOcean and PowerOcean DC Fit systems. How does it work? You can charge your electric vehicle using energy obtained from photovoltaic panels. Excess electricity will be directed to the PowerOcean system's batteries - it can be used in the future when needed.
Attention to Every Detail
PowerPulse won't take up much space in your garage. Its dimensions are only about 283 x 178 mm - less than a standard A4 sheet! The device is also straightforward to install and comes with a specially designed double-walled housing. This makes it very durable and resistant to damage - even in exceptionally harsh weather conditions!
Safety is a Top Priority
Enjoy not only fast but also safe charging. PowerPulse is equipped with protection against overvoltage, overload, and overcurrent. It also has a residual current device (RCD) and a built-in system that monitors real-time temperature. Furthermore, when your electric vehicle is fully charged, the device will automatically stop working. So, you don't have to worry about damaging the car's battery! PowerPulse also has a special LED indicator that provides information about its status.
Many Possibilities with the EcoFlow App
Gain full control over your PowerPulse system - whether you are at home or away. Just install the dedicated EcoFlow application, which provides convenient access to key features and settings! With it, you can intuitively manage the energy from the photovoltaic installation, monitor consumption, plan charging, set vehicle priorities, and much more.
| Brand | EcoFlow |
|---|
| Name | PowerPulse |
|---|
| Charging Voltage | 230 V (single phase), 400 V (three phases) |
|---|
| Charging Current | 16 A |
|---|
| Frequency | 50/60 Hz |
|---|
| Cable Length | 5 m |
|---|
| Cable Type | IEC 62196-2 Type 2 |
|---|
| Protections | Against overvoltage, low voltage, overcurrent, overheating, short circuit, residual current, grounding, lightning strikes |
|---|
| RCD Protection | 6 mA DC, 30 mA AC type-A |
|---|
| Current Regulation Accuracy | 6 A - 0.5 A, minimum charging current 6 A |
|---|
| Connectivity | IEEE 802.11 b/g/n 2.4 GHz Wi-Fi, Ethernet, Bluetooth, RS485 |
|---|
| IP Rating | IP65 |
|---|
| Mechanical Protection Class | IK10 |
|---|
| Dimensions | 178 x 283 x 99 mm (without cable) |
|---|
| Weight | 3 kg (with cable) |
|---|
| Charger Holder Dimensions | 120 x 172 x 80 mm |
|---|
| Application | EcoFlow |
|---|
| Compliance | EN IEC61851-1:2019, EN IEC61851-21-2:2021, EN300328V2.2.2, EN300330 V2.1.1, EN301489-1 V2.2.3, EN301489-17 V3.2.4, EN301489-3 V2.3.2, EN IEC61000-6-1:2019, EN IEC61000-6-3:2021, EN IEC62311:2020, IEC62955:2018EEN60529:1991+A1:2000+A2:2013, EN62196-1:2014, EN IEC62196-2:2022, EN50620:2017+A1:2019, EN61984:2009 EN60529:1991+A1:2000+A2:2013, 2011/65/EU+2015/863, 1907/2006, 1907/2006, 1907/2006, 2019/1021, 2012/19/EU, (EU) 2022/30EN303645 |
|---|
