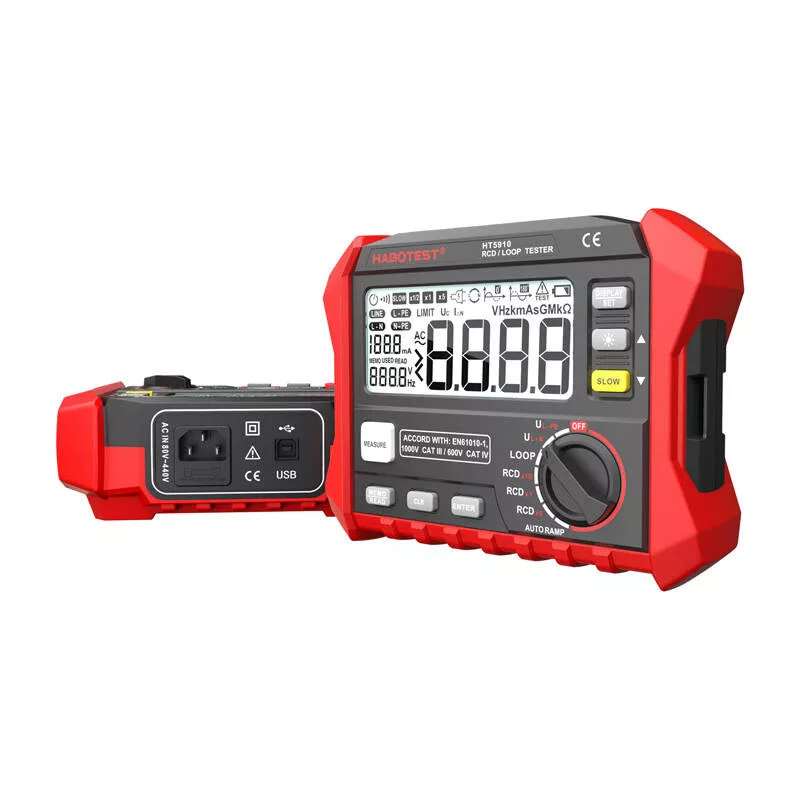

Digital RCD / Loop Resistance Tester Habotest HT5910
The Habotest HT5910 resistance tester is a tool that will allow you to get resistance measurements of power circuits. It offers loop, RCD and AUTORAMP measurements. It has an easy-to-read LCD display that will provide you with quick and clear information about the data obtained.
Functionality first of all
With the help of the meter you will successfully obtain information on earth resistance. You will gain access to 100 groups, which store data from performed measurements. The device is equipped with a special knob which allows you to select the desired type of measurement and start the meter operation with the "Measure" button.
Convenience of use

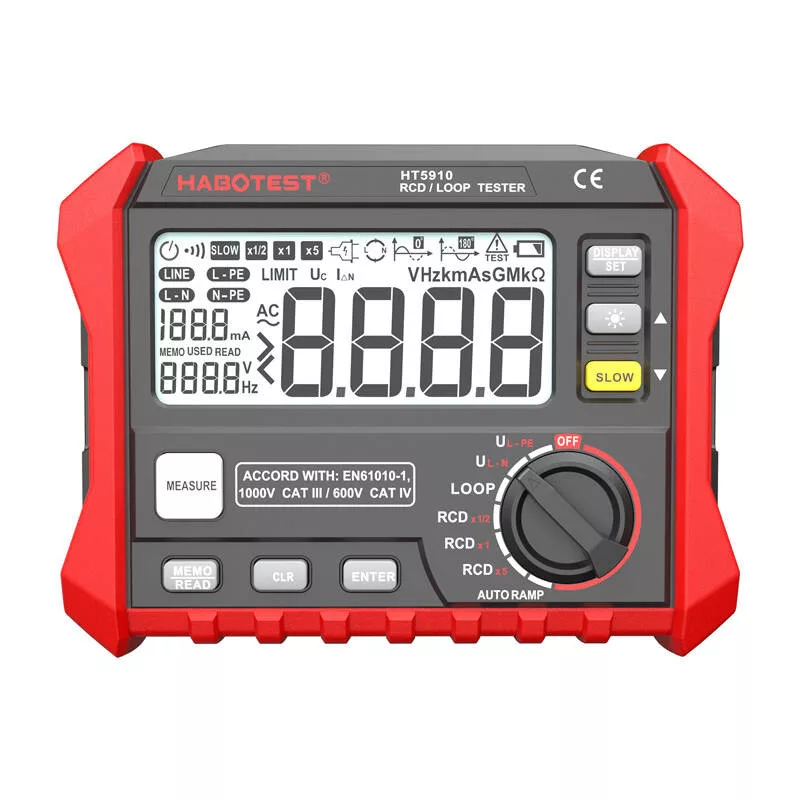

The HT5910 uses an easy-to-read LCD screen that displays all data obtained. This gives you instant access to your measurements, even in dim or bright environments. The meter draws its power from 6 AA batteries, which must be purchased separately.
| Producer | Habotest |
|---|
| Model | HT5910 |
|---|
| Tripping time | 1 x IΔ N300 (500ms), 5 x IΔ N40ms (150ms) (±3ms) |
|---|
| Tripping current | (0.2-1.1)IΔN (±0.1IΔN) |
|---|
| Contact voltage | 0~99.9V (±10%+0.2V) |
|---|
| Alternating Voltage | 0~440 V (±3%+3V) |
|---|
| Frequency | DC, 45~65 Hz (±1 Hz) |
|---|
| Loop resistance (RL) | 0.1~2000Ω (±10%+0.2d) |
|---|
| RL current test | 0.51 IΔN (±10%+10d) |
|---|
| Multiplying power of measuring current | x0.5, x1, x5 |
|---|
| Current level (IΔN) | 10 mA, 30 mA, 100 mA, 300 mA, 500 mA |
|---|
| Phase angle | 0° or 180° |
|---|
| Power supply | 6 x AA 1.5V battery (not supplied) |
|---|
| Dimensions | 180 x 140 x 65 mm |
|---|
| Weight | Approximately 95 g |
|---|
| Safety rating | EN61010-1 / CAT.III600V |
|---|
| Data storage | 100 groups |
|---|
| Interface | USB2.0 |
|---|
