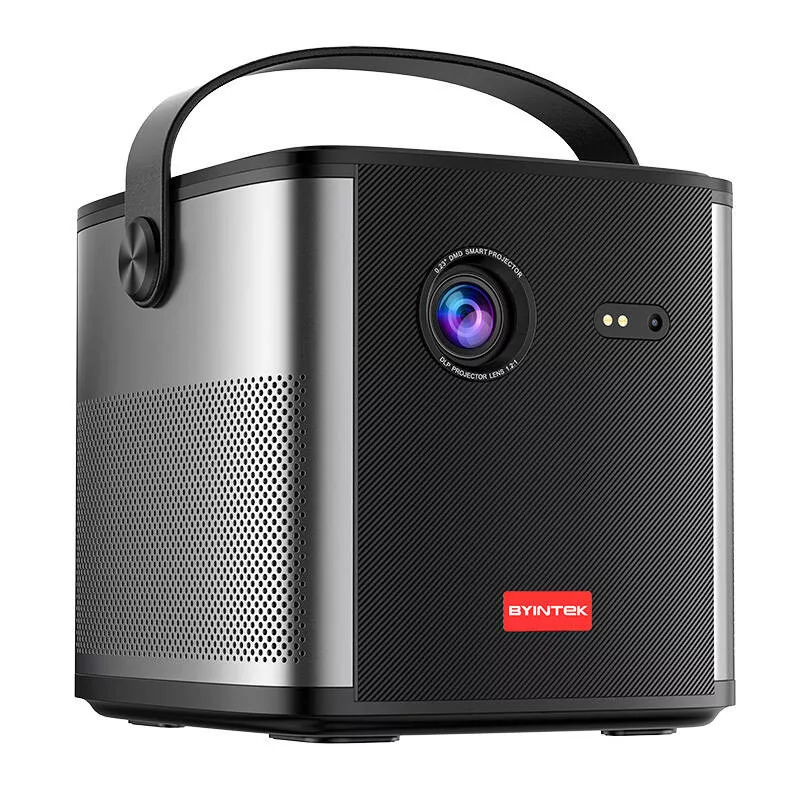

BYINTEK U80 MAX Projector
The U80 Max projector redefines the concept of a portable home theater. It features DLP technology with a native Full HD resolution of 1920 x 1080 pixels and delivers exceptional image quality. It performs perfectly even in brightly lit rooms. The U80 MAX is distinguished by its support for the latest video decoding technologies, including 4Kp60, AV1 and HDR10+, allowing you to watch content in the highest quality available. Automatic focus with TOF laser technology, Android 11 operating system and pre-installed apps such as YouTube and Google Play Music make it an ideal choice for work and entertainment!
A picture full of details
Enjoy a realistic, detailed image! The BYINTEK UFO U80 Max projector uses DLP display technology with a 0.23-inch Ti chip, which guarantees exceptional image quality with a native resolution of 1920 x 1080 pixels. The device offers a brightness of 500 ANSI lumens and a contrast ratio of 20000:1, which translates into clear and vivid colors even in brightly lit rooms!
Trouble-free image alignment and long working time
One of the main advantages of the projector is its intelligent focus management, using the TOF (Time of Flight) standard for laser autofocus, which allows for quick and precise image adjustment. An additional advantage is the 6D keystone function, which allows precise vertical and corner image adjustment, ideal for side projection, which is invaluable for limited space or unusual settings.
Your multimedia center
Play games, watch movies and enjoy your favorite content in the best quality! The BYINTEK UFO U80 Max runs on the Android 11 operating system and supports video decoding in 4K standards, making it perfect for streaming media content and gaming. The projector also supports Chromecast, allowing easy sharing of content from mobile devices. Built-in stereo speakers of 5 watts each deliver clear and powerful sound to fill the space during a movie or gaming session.
Full immersion with 3D images
The BYINTEK U80 Max projector fully supports 3D features for an even more immersive experience. The device is compatible with DLP-LINK 3D glasses, setting new standards in home entertainment. The U80 MAX is equipped with a 15,000 mAh rechargeable battery, allowing it to be used for 1.5 to 3 hours without being connected to a power source.
Seamless connectivity
There is no room for unnecessary complications at Byintek! The projector provides support for Bluetooth 5.0 and 2.4GHz/5GHz Wi-Fi, making it easy to connect wirelessly to other devices. Support for a variety of video and audio formats allows you to play almost any kind of media files without having to install additional drivers and change formats.
Practical design
Take the projector with you wherever you need it! The BYINTEK U80 Max features small dimensions (146 × 144 × 161 mm) and a low weight of about 1.3 kg, making it extremely portable and easy to store or transport. Support for inputs such as USB and HDMI allows you to connect it to a variety of sources, making it an excellent choice for home movie sessions, business and educational presentations.
Included
Projector
Remote control
DC 19V 8A power supply
Optics
| Display type: | DLP |
|---|
| Display chip: | Ti 0.23 inch WVGA DMD (with 100% off-axis optics) |
|---|
| Brightness: | 500 ANSI lumens |
|---|
| Lamp: | Osram RGB-LED, manufactured in Germany |
|---|
| Uniformity: | >98% |
|---|
| FOFO contrast ratio: | 20000:1 |
|---|
| Standard resolution: | XPR 1920*1080P |
|---|
| 3D Function: | Support for 3D function, support for 3D DLP-LINK glasses. |
|---|
Projection
| Throwing ratio: | 1.2:1, 38 inches from a distance of 1 meter |
|---|
| Throwing range: | 11-300 inches |
|---|
| Throwing distance: | 0.3-8 meters |
|---|
| Image aspect ratio: | 16:9 (standard)/4:3 |
|---|
| Keystone correction: | Automatic trapezoidal correction up and down ±40°. |
|---|
| Projection methods: | Supports front projection, rear projection, suspended projection |
|---|
| Speakers: | 2x5W (surround sound with super bass) |
|---|
System parameters
| SoC: | Amlogic S905Y4 |
|---|
| CPU: | ARM Quad 64-bit Cortex-A35 |
|---|
| GPU: | ARM Mali-G31 MP2 |
|---|
| RAM: | 2GB DDR3 |
|---|
| ROM: | 16GB eMMC |
|---|
| Operating System: | Android 11 |
|---|
| DRM: | Widevine, Playready |
|---|
| Wi-Fi display: | Supports Airplay, Miracast, shared Wi-Fi LAN screen and off-network screen |
|---|
| Wired sync: | Support for synchronous display via USB cable for iOS devices and some Android devices |
|---|
| Video decoders: | AV1 MP-10 4K2K@60fps, H.265 HEVC MP-10@L5.1 up to 4K2K@60fps, VP9 Profile-2 up to 4K2K@60fps, AVS2-P2 up to 4K2K@60fps, H.264 AVC HP to 4K*2K@30fps, MPEG-4 ASP@L5 to 1080P@60fps, MPEG-2 MP/HL to 1080P@60fps, MPEG-1 MP/HL to 1080P@60fps, AVS+ JiZhun Profile to 1080P@60fps |
|---|
| Video formats: | MKV, MPG, MPEG, DAT, MP4 |
|---|
| Audio decoders: | MPEG1/2, MP3, AAC/HE-AAC, FLAC, OGG, DD, DD+ |
|---|
| Audio formats: | MPEG1/2, MP3, AAC |
|---|
| Bluetooth: | Bluetooth 5.0 |
|---|
| Wi-Fi: | 2x2 MIMO Wi-Fi 2.4GHz/5 GHz 802.11 a/b/g/n/ac |
|---|
| Power input parameters: | DC 19V, 3.42A, 64.98W |
|---|
| Inputs: | USB, HDMI |
|---|
| Languages: | Supports multiple languages, including Afrikaans, Català, čeština, dansk, deutsch, english, espanol, français, hrvatski, indonesia, isiZulu, italiano, magyar, melayu, nederlands, norsk bokmal, polski, português, română, rumantsch, slovenčina, slovenščina, suomi, svenska, tiếng Việt, türkçe, ελληνικά, русский, српски, українська, 한국어, simplified and traditional Chinese, Japanese, Arabic |
|---|
Interface
| HDMI input: | Supports HDMI input |
|---|
| Headphone output: | audio output, 3.5mm connectors (can connect headphones or speakers) |
|---|
| DC input: | 19V/3.42A 35W power adapter |
|---|
Battery
| Battery capacity: | 15000mAh |
|---|
| Lifetime: | 1.5~3 hours, depending on operation mode |
|---|
General
| Total energy consumption: | 35W |
|---|
| Energy efficiency: | AC100-240V, 50/60Hz |
|---|
| Product size: | 146144161 mm |
|---|
| Weight : | approx. 1.3 kg |
|---|
